Integrate Auth0

Applicable to both Classic and Federated modes

Portworx Backup allows for the integration of Auth0 as an external authorization provider, enabling user authentication and role-based access control (RBAC) for either full or restricted access to the application's resources.

Prerequisite

• An active user profile in Auth0.

To integrate Auth0 with Portworx Backup:

1. Log in to Auth0 with valid and active user credentials.

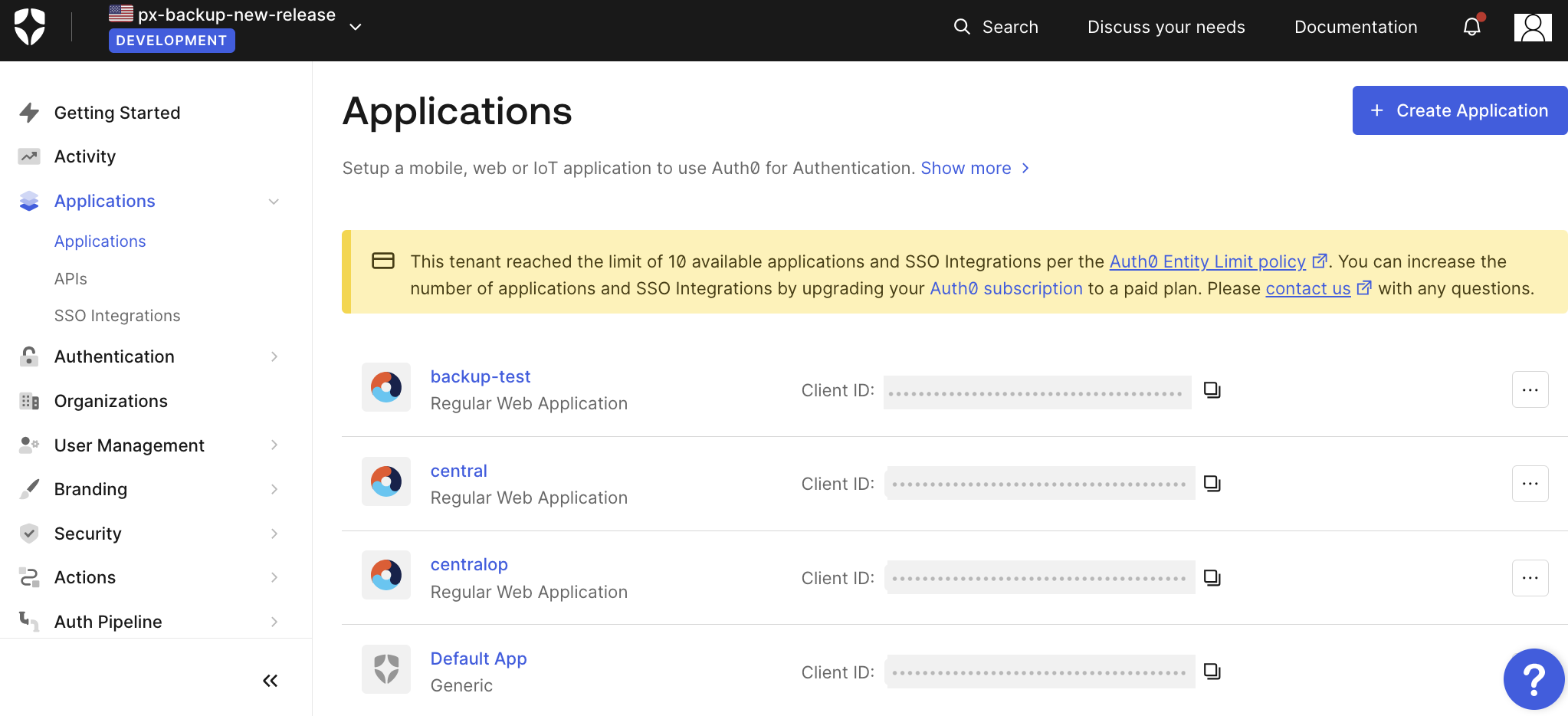

2. From the home page, in the left navigation pane, go to Applications >> Applications.



3. Navigate to the required user profile.

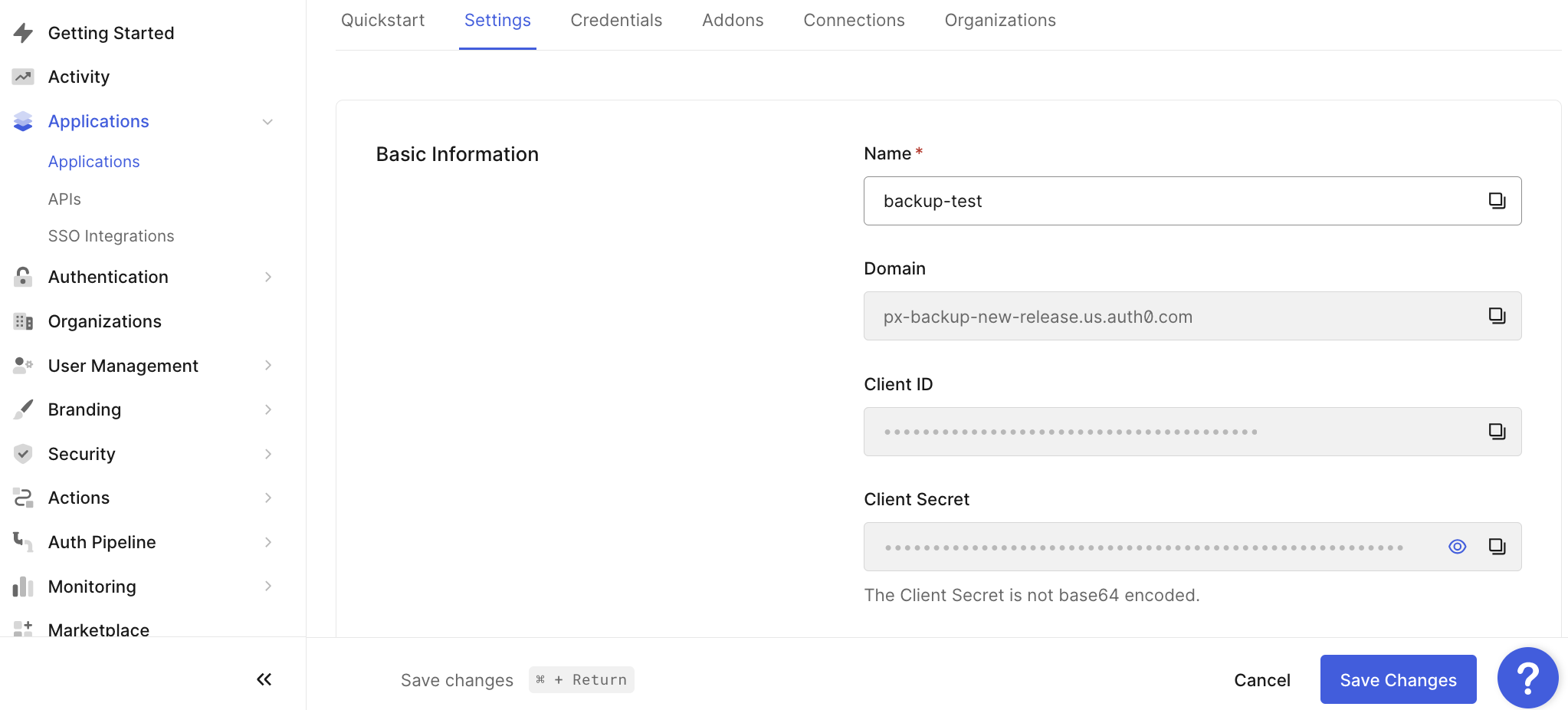

4. On the Settings tab, make a note of Domain, Client ID and Client Secret.



5. Enter the Domain (Endpoint), Client ID, and Client Secret in the Portworx Backup web console during installation to integrate Auth0 as an external authorization provider. For more information on these fields, see install Portworx Backup.

6. After installing Portworx Backup (and integrating Auth0), log in to the Auth0 web console.

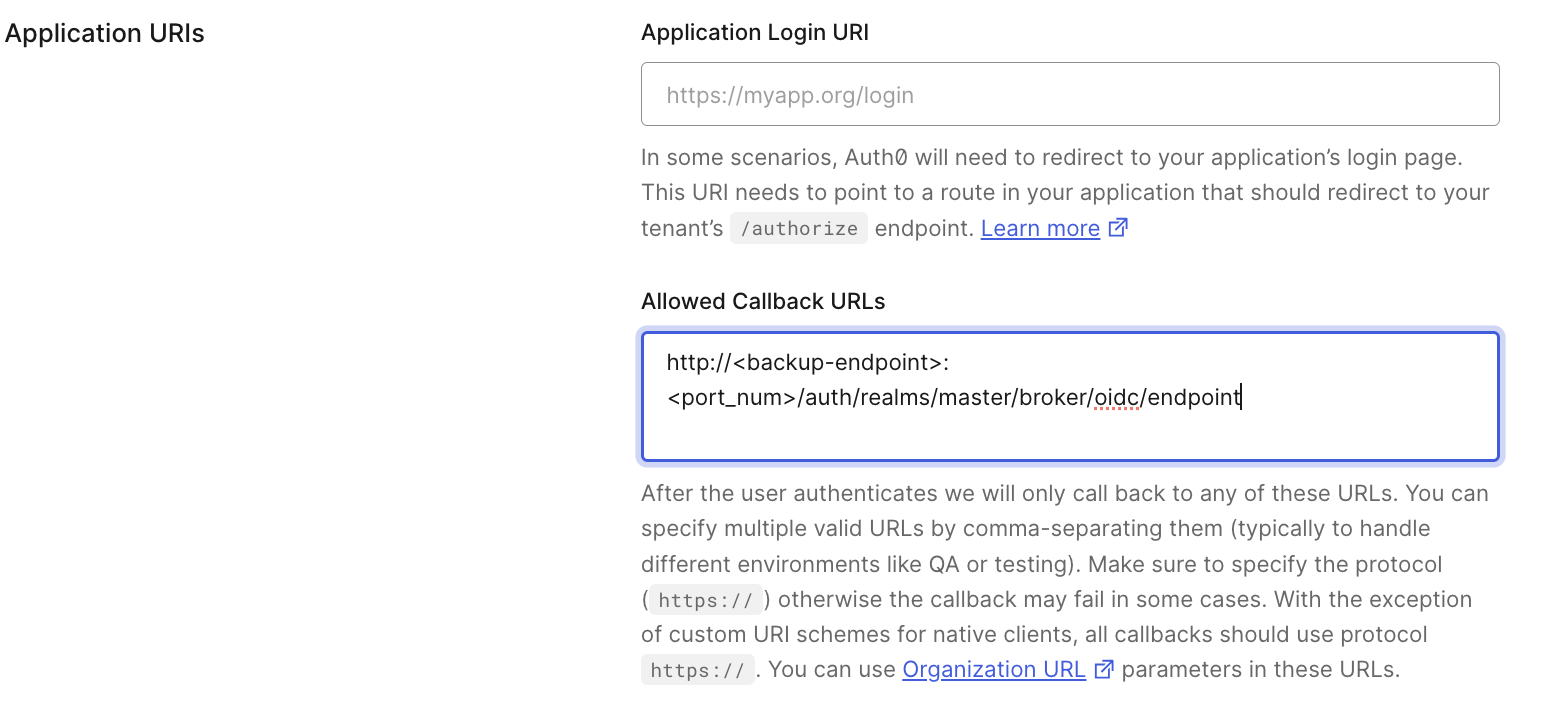

7. Navigate to Application > Settings> Application URL and enter Portworx Backup endpoint details and click Save:



   Sample endpoint value:

   https://<backup-endpoint>/realms/master/broker/oidc/endpoint

   note

   Auth0 production tenants require HTTPS callback URLs. Ensure your Portworx Backup endpoint is accessible over HTTPS before configuring the Auth0 application URL. For Portworx Backup 2.8.x and earlier, use /auth/realms/master/broker/oidc/endpoint. For Portworx Backup 2.9.0 and later, the /auth prefix is removed.

Backup endpoint

• Backup endpoint can be the IP address of a worker node or ingress URL for on-premises environments.
• For Azure, it is the external IP of the load balancer service.
• For GCP, IBM, and AWS, the backup endpoint is the load balancer URL.

Port Number

• Required only for on-premises clusters using a worker node IP or node port (typically the port of px-central-ui service in this case).

Related documentation:

Auth0 docs
