Schedules

Navigation

Home page → Left navigation pane → Clusters → (cluster-name) → Schedules

Page Overview

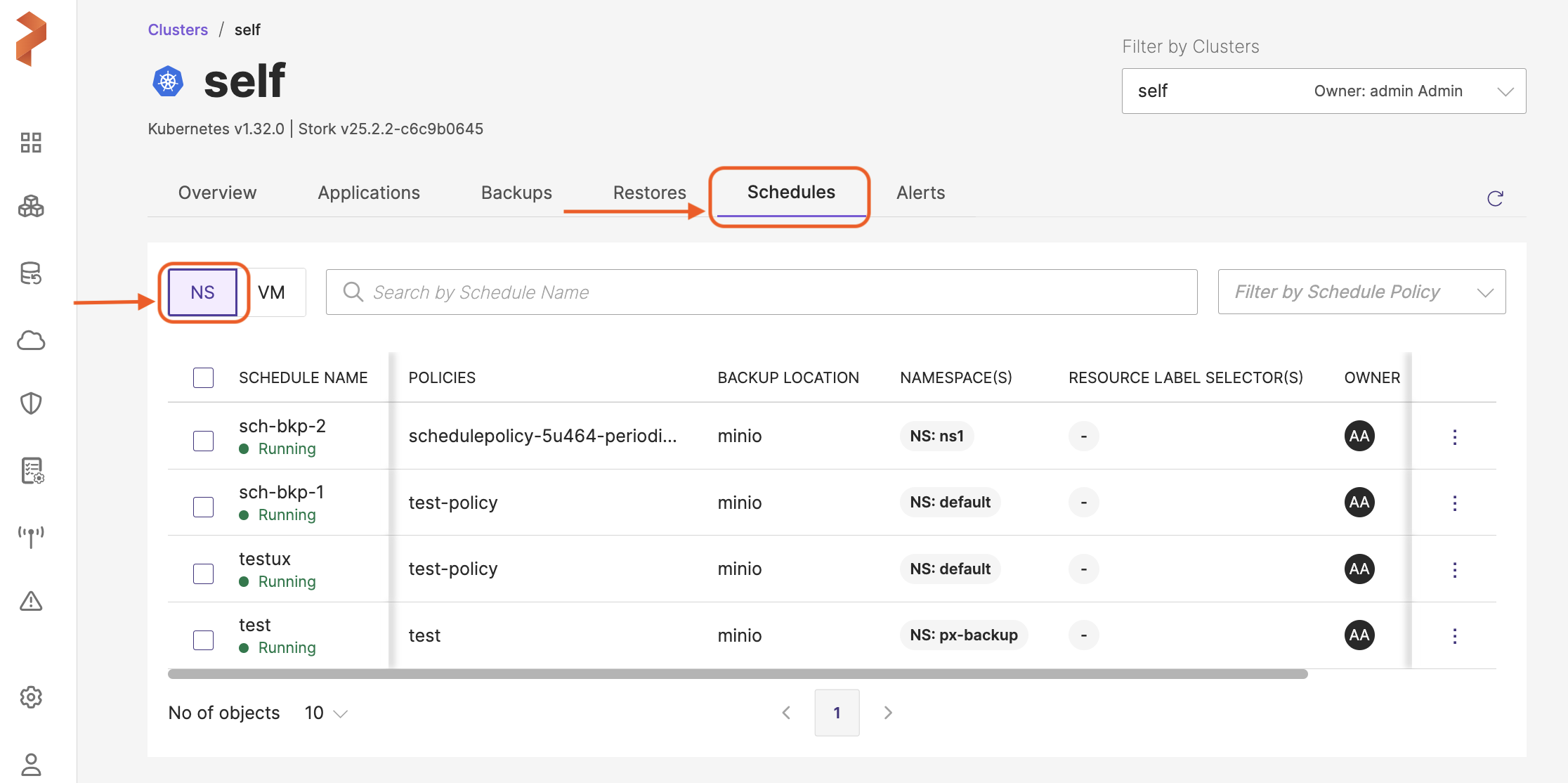

The Schedules page provides a list of all configured backup schedules for the selected cluster. This includes details such as the name of the schedule, backup location, target namespaces, resource label selectors, applied policy, and the owner. Users can manage each schedule through contextual actions.

Page Components

This page mainly consists of the following components:

1. NS/VM View tab Located directly below the top navigation tab.

   1. NS (Namespace): lists out the schedules associated with namespace backups

   2. VM (Virtual Machines): displays the schedules associated with VM backups

2. Search and Schedules table

   1. Search by Schedule Name: a search box that allows you to search for the schedules by their name. When you key-in a search string and hit enter, the schedule table displays only the schedules that match the string you entered

   2. Filter by Schedule Policy: a filter to refine the schedules based on the schedule policies they belong to

   3. Schedules table:

   • Selection checkbox: checkbox to perform bulk operations on schedules

   • SCHEDULE NAME: displays name of the schedule you provided during creation of the schedule

   • Notification icon: appears just below the schedule name and notifies the user on the schedule status, it can display the following statuses:

   • Running: implies that the schedule is active and running

   • Suspended: schedule is paused and the backup creation operation will run only after the schedule is manually resumed by the user

   • BACKUP LOCATION: lists the backup location on which the schedule runs for the backup

   • NAMESPACES: lists the namespace where the backup (tied to the schedule) resides

   • RESOURCE LABEL SELECTORS: displays the labels associated with the schedules

   • OWNER: lists the user who has created the schedule

   • UPCOMING SCHEDULE: displays when is the next upcoming schedule

   • Remark icon: The remark icon appears near the vertical ellipsis when a user adds or updates a note for a schedule. Notes can be modified during suspend, resume, or edit actions, as well as during bulk suspend or resume operations. If a note is updated in any of these cases, the icon appears. Clicking the icon displays the latest remark. The icon is hidden if no note exists or if the remark is removed.

   • Vertical ellipsis: located at the end of the each schedule row, this provides few options to the user to get more granular details of the schedule and they are listed here:

     • View Json: displays detailed metadata of the backup

     • Show Details: shows necessary details like namespaces, volumes and resources that are backed up along with some backup metadata

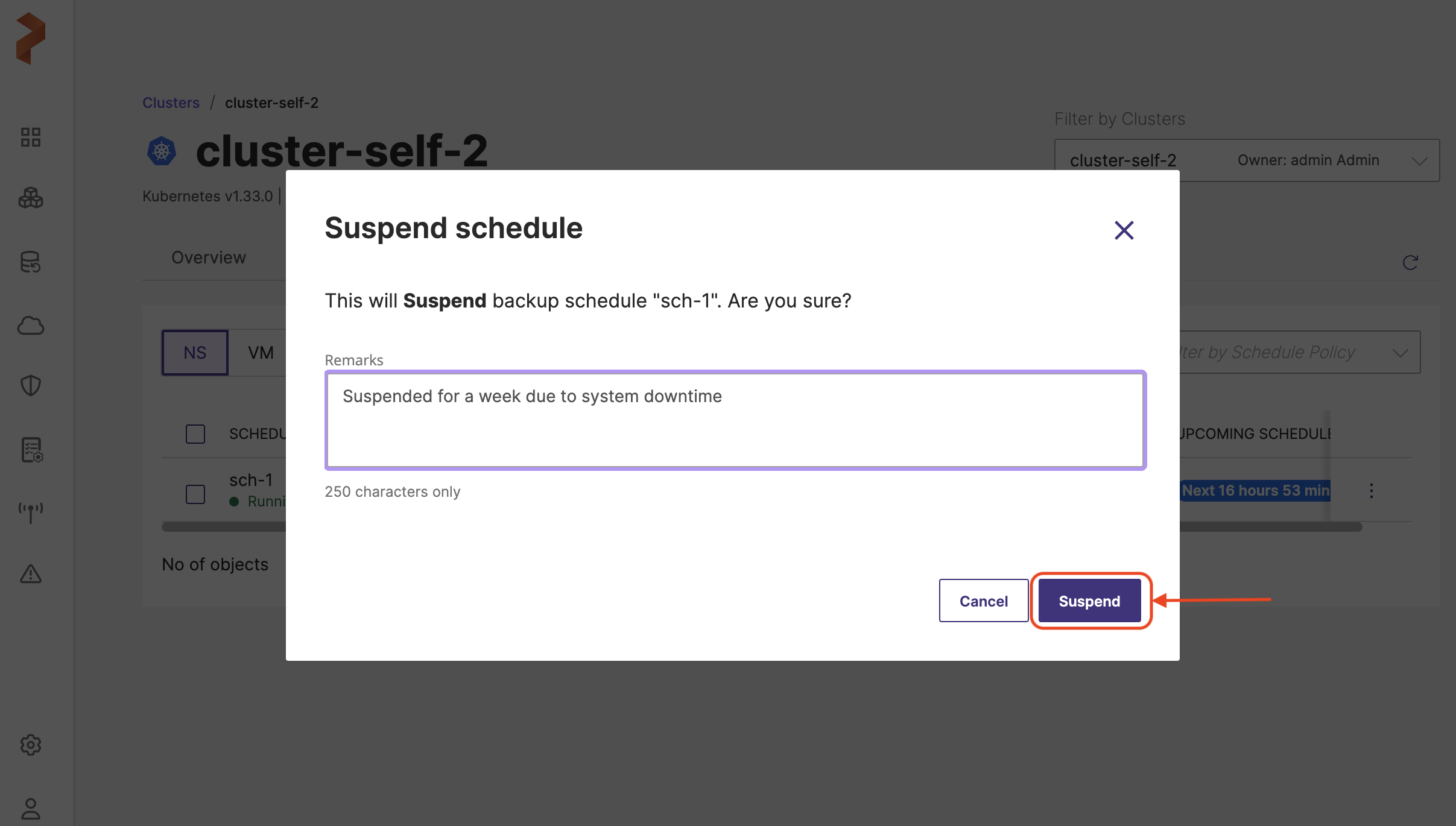

     • Suspend: allows the user to pause the schedule for the required duration and to resume back later when needed. You can also add a note to the schedule to inform other users on the reason for suspending the schedule.

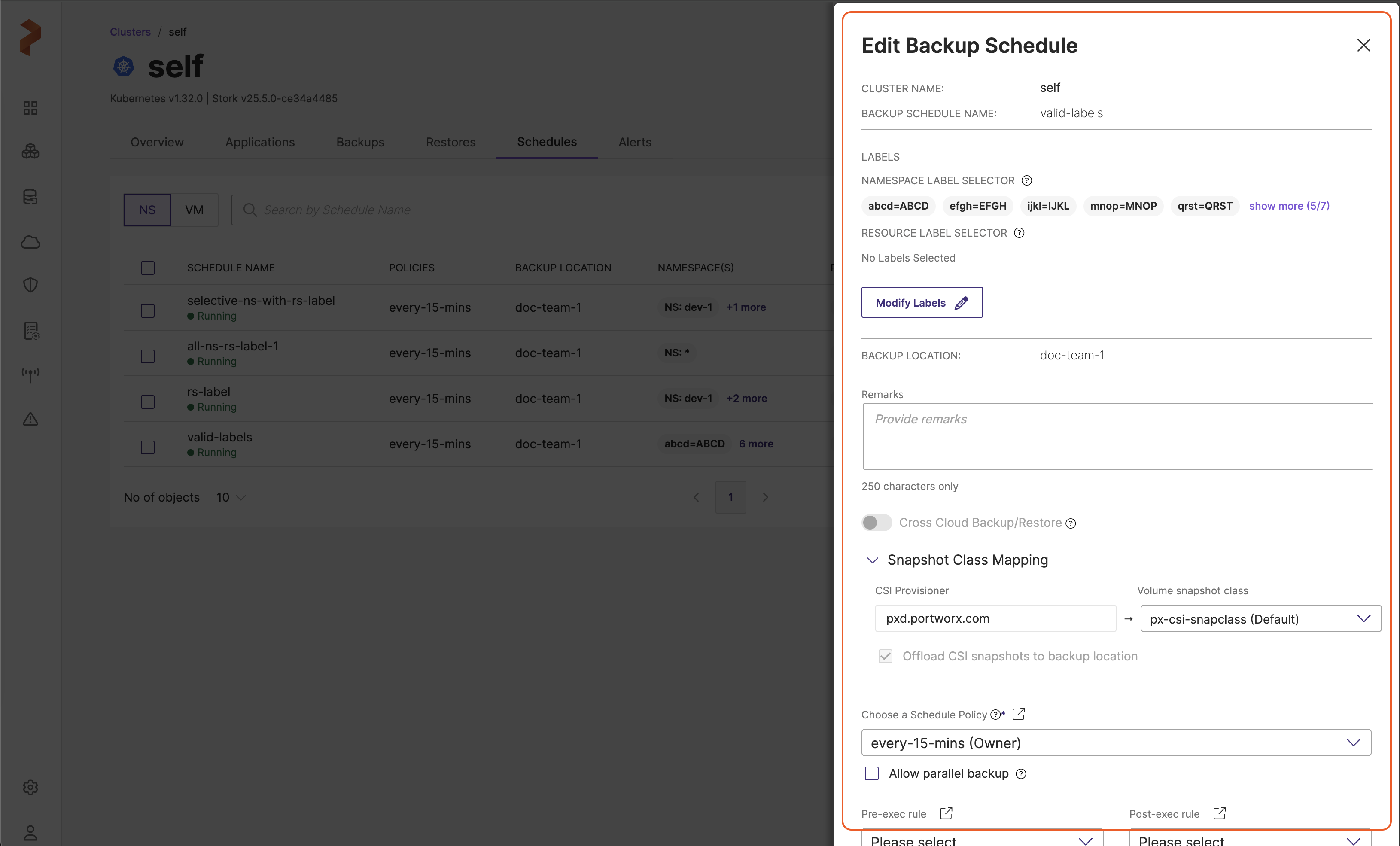

     • Edit: allows you to edit the backup schedule to:

       • User can update the remark during Edit operation.
       • Change the schedule policy
       • Enable parallel backups for Portworx volumes
       • Associate pre and post exec rules
       • Add new namespaces (with search option) or delete the existing namespaces that exist within the same cluster

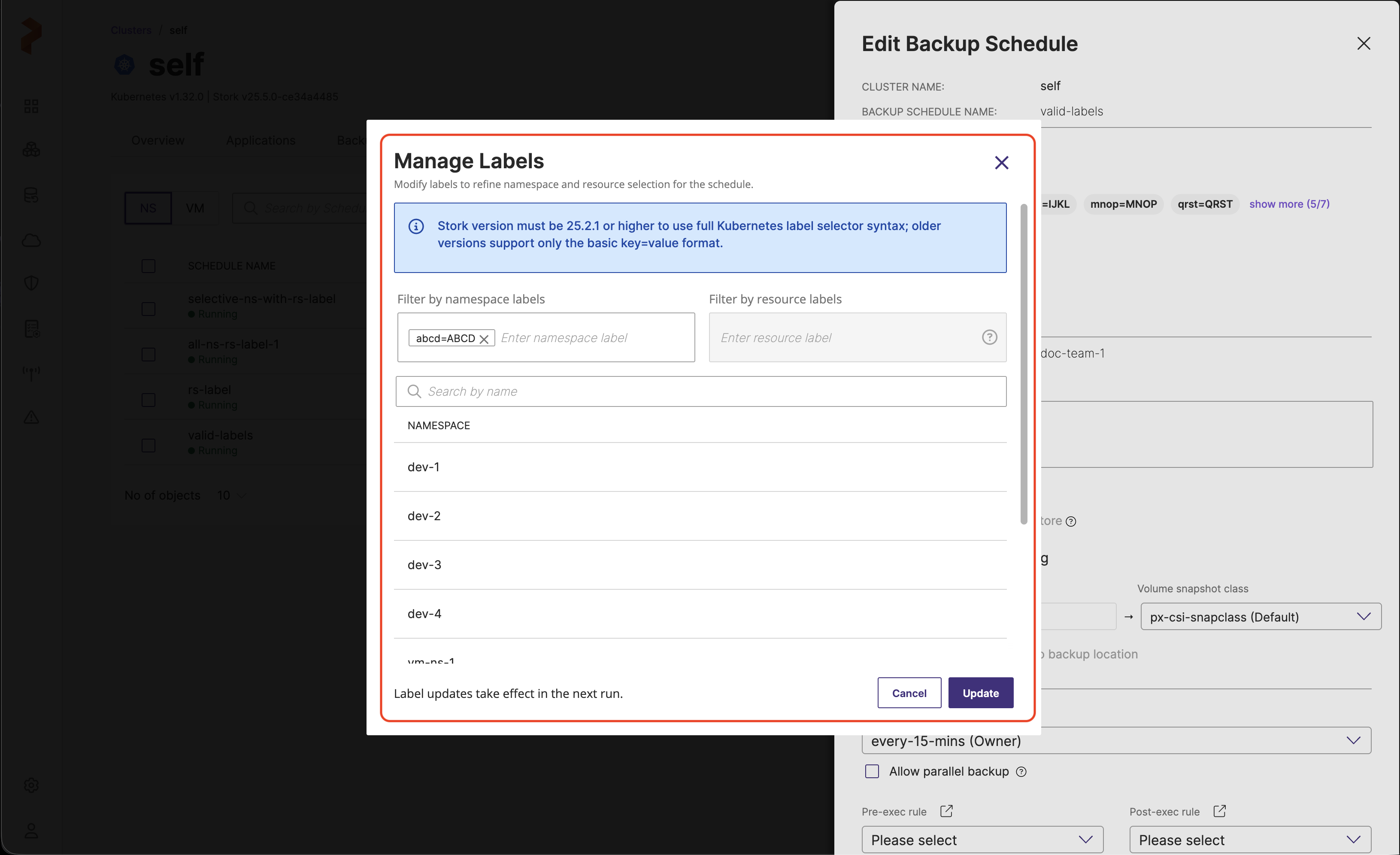

       • Add, modify, or delete the labels

     • Remove: you can delete the backup with this option

   4. Pagination control: navigational controls to move through different pages of the schedules list.


   note

   The VM tab for schedules has the same components and functionality as the NS tab. You can perform bulk operations by selecting multiple schedules using the checkboxes in each row and then selecting Suspend or Resume. For more information, refer to Bulk schedule operations.
