Add AKS clusters

Prerequisites

Before adding AKS clusters, ensure that:

• Installation prerequisites are met

• Stork is installed

• You have an:

  • Azure Storage account

  • Azure cloud account

  • Azure backup location in Portworx Backup

Add Azure cluster to Portworx Backup

To add an Azure cluster from Portworx Backup web console:

1. In the home page, go to the left navigation pane and click Clusters.

2. In the upper-right corner, click Connect cluster:

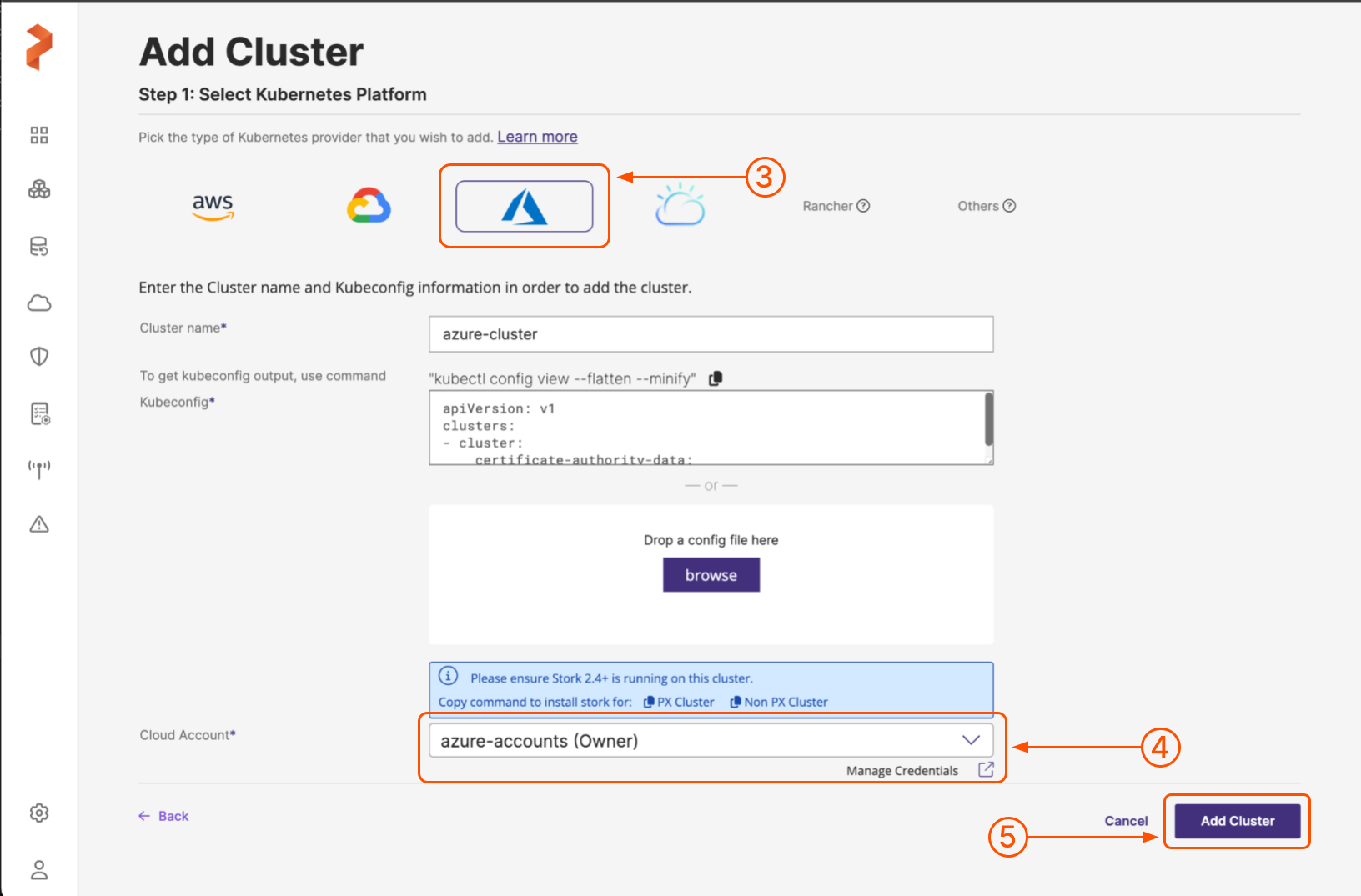

3. In the Add Cluster page, under Select Kubernetes Platform, click Azure icon and then enter the following cluster details:



   • Cluster name: enter a name for your cluster

   • Kubeconfig: retrieve the Kubeconfig from your cluster and paste it here or click Browse to upload it from a file.

   If you have AKS cluster with Azure AD enabled, refer kubelogin configuration to generate the kubeconfig.

4. Choose the Azure cloud account you added earlier from the drop-down list.

5. Click Add cluster.

Portworx Backup adds your Azure cluster and to view the added cluster in the web console, go to the left navigation pane and click Clusters icon.
