Backup RabbitMQ on Kubernetes

You can use the instructions on this page to create pre and post backup rules with Portworx Backup, which take application-consistent backups for RabbitMQ on Kubernetes in production.

Every RabbitMQ node uses a number of files and directories to load configuration, metadata, and log files. The directory setting which configures RabbitMQ’s node database directory is called RABBITMQ_MNESIA_BASE. The databases in this directory hold RabbitMQ messages. This directory can be overridden and therefore configured differently. Most often it is located at /var/lib/rabbitmq/mnesia.

Make sure /var/lib/rabbitmq is mounted to a volume within the pod specification.

Topology definitions and messages are the most valuable types of data in RabbitMQ. RabbitMQ suggests exporting definitions. RabbitMQ also suggests tRabbitMQ must be stopped in order to back up messages properly.

Installation

Prerequisites

note

• RabbitMQ pods must have a label for this to work properly. app=rabbitmq-ha is used in this example.
• RabbitMQ queues must be durable and messages must be persistent.

Create rules for RabbitMQ

Create rules for RabbitMQ that will run both before and after the backup operation runs:

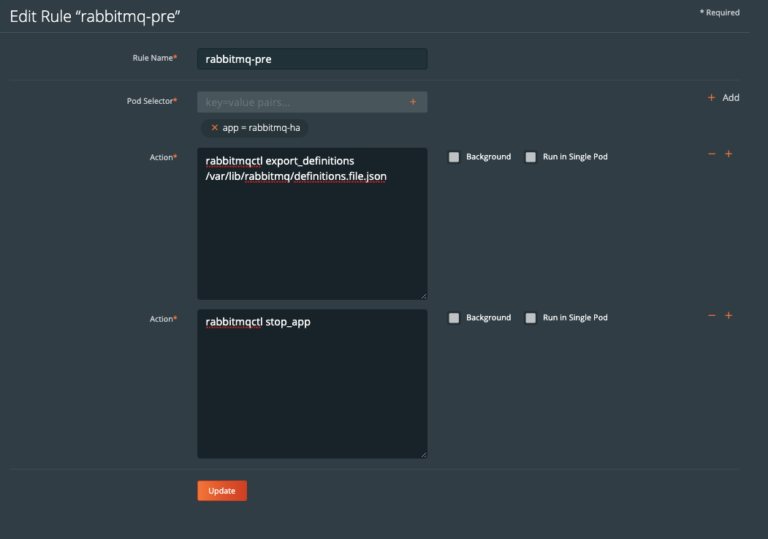

Create a pre-exec backup rule for RabbitMQ

You will set up a rule with two actions. The first action will be to export_definitions to a location within /var/lib/rabbitmq so that the version of definitions for that node will be available with any given restore point.

The second action will be to run stop_app since it is the best practice to make sure RabbitMQ is not running during the snapshot.

1. Navigate to Settings → Rules → Add New.

2. Add a name for your Rule.

3. Add the following app label:

   app=rabbitmq-ha

4. Add the following action:

   rabbitmqctl export_definitions /var/lib/rabbitmq/definitions.file.json

5. Add a second action to the same rule:

   rabbitmqctl stop_app

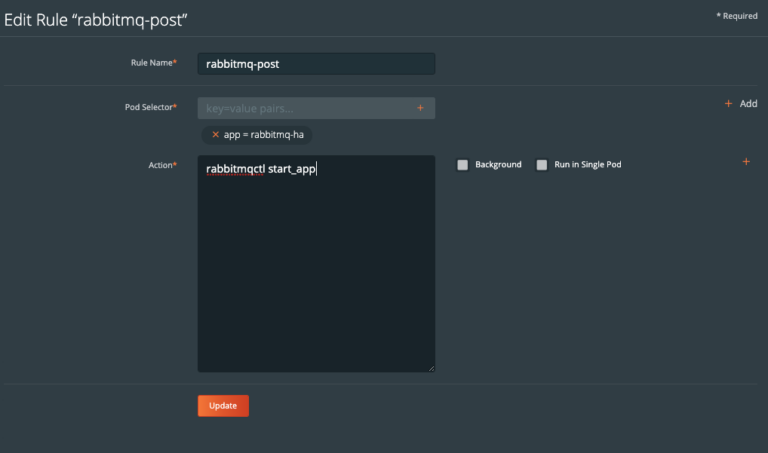

Create a post-exec backup rule for RabbitMQ

Next, create a post-exec that runs start_app. This will bring each RabbitMQ app back online after the data snapshot takes place. This ensures the backup is application consistent.

1. Navigate to Settings → Rules → Add New.

2. Add a name for your Rule.

3. Add the following app label:

   app=rabbitmq-ha

4. Add the following action:

   rabbitmqctl start_app



Use the rules during backup of RabbitMQ

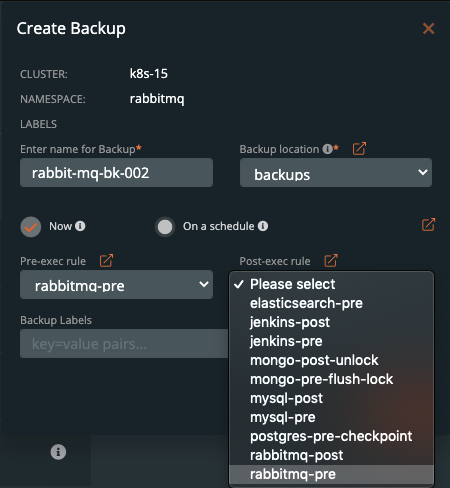

During the backup creation process, select the rules in the pre-exec and post-exec dropdowns:

Once you have filled out the backup form, click Create

Demo

Watch this short demo of the above information.
