Portworx Autopilot

Autopilot is a rule-based engine that responds to changes based on metric conditions and then automatically takes actions such as adding capacity, rebalancing storage and so on. Autopilot allows you to specify monitoring conditions along with actions it should take when the conditions occur.

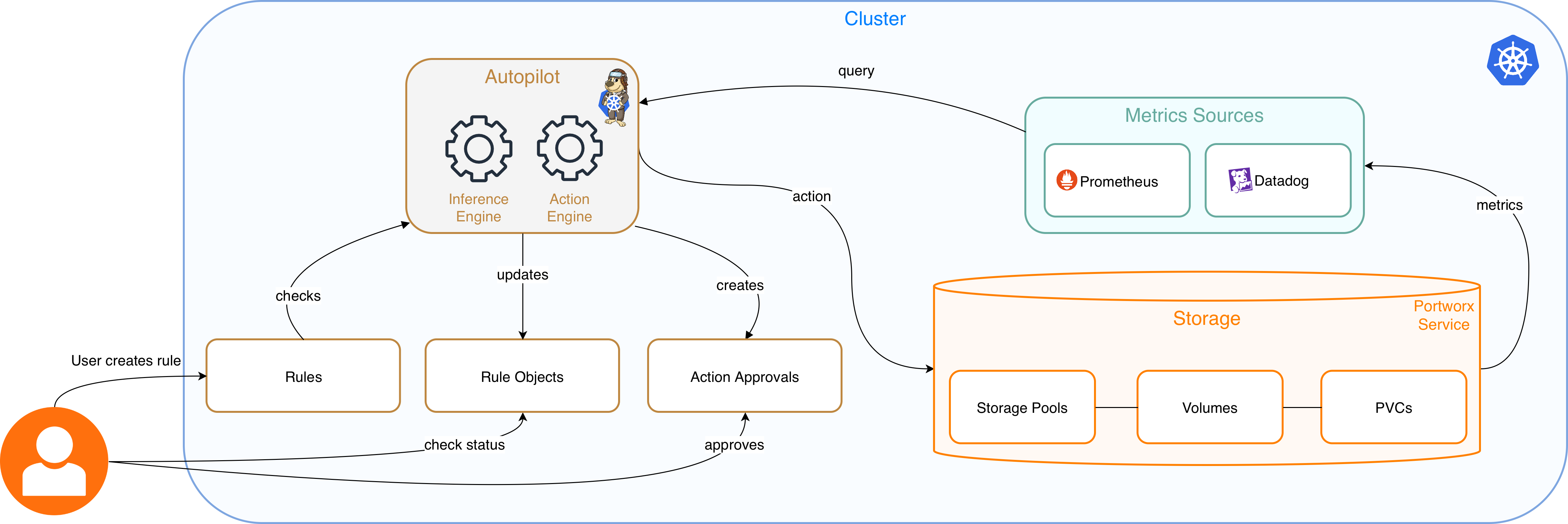

Autopilot Overview

A user creates Portworx Autopilot rule. When an event occurs that is defined by an Autopilot rule, Autopilot can take a decision by fetching and using the metrics from the monitoring source configured on your cluster.

Autopilot allows your cluster to react dynamically without your intervention to events such as:

  • Resizing PVCs when it is running out of capacity
  • Scaling Portworx storage pools to accommodate increasing usage
  • Rebalancing volumes across Portworx storage pools when they come unbalanced

This topic describes the steps to configure and upgrade Portworx Autopilot.

Configure Autopilot​

Configuring Autopilot with Portworx on Kubernetes cluster includes the following:

Configure Metrics Collection​

Portworx Enterprise requires you to Enable Prometheus or Enable Datadog to allow the agents to collect Portworx metrics.

Enable Prometheus​

Ensure that your cluster has a running Prometheus so that Autopilot can fetch the metrics from it and take actions if the monitoring conditions are met.

Autopilot requires a running OpenShift Prometheus instance in your cluster. If you don't have Prometheus configured in your cluster, refer to the Observability section to set it up.

After you have enabled OpenShift Prometheus, fetch the Thanos host, which is part of the OpenShift monitoring stack.

oc get route thanos-querier -n openshift-monitoring -o json | jq -r '.spec.host'
thanos-querier-openshift-monitoring.tp-nextpx-iks-catalog-pl-80e1e1cd66534115bf44691bf8f01a6b-0000.us-south.containers.appdomain.cloud

Configure Autopilot using the above route host to enable its access to Prometheus's statistics.

Enable Datadog​

Autopilot uses Datadog’s Metrics API and needs a Datadog API key and Application key to authenticate. Create a Kubernetes Secret to provide these details. Here is an example manifest where you can replace the namespace, secret name, and encoded key values as required.

apiVersion: v1
kind: Secret
metadata:
  name: datadog-autopilot-credentials
  namespace: datadog-ns
  labels:
    app: autopilot
    component: datadog-provider
type: Opaque
data:
  # Base64 encoded Datadog API Key
  api-key: <base64-encoded-api-key>
  # Base64 encoded Datadog Application Key
  app-key: <base64-encoded-app-key>

Ensure that Autopilot has RBAC permission to read this Secret. The app-key must have metrics Read permission.

Configure Datadog Agent to export PX metrics(Recommended)

Refer to the official Datadog Documentation to configure the Datadog agent. The steps mentioned below is a recommended approach to install and configure Datadog:

  1. Install Datadog using Helm chart with following values config file:

    datadog:
      site: "datadoghq.com"
      clusterName: "your-cluster-name"
      apiKeyExistingSecret: "datadog-autopilot-credentials"

      kubelet:
        tlsVerify: false

      clusterChecks:
        enabled: true

      orchestratorExplorer:
        enabled: true

      clusterAgent:
        enabled: true
        admissionController:
          enabled: true
          mutateUnlabelled: false

    Replace site, clusterName, and apiKeyExistingSecret and save it in a file datadog_config.yaml. The Agent will be responsible for scraping PX metrics and sending them to Datadog.

    helm repo add datadog https://helm.datadoghq.com
    helm upgrade --install datadog-agent datadog/datadog -f ./datadog_config.yaml

    This should bring up the datadog Agent.

  2. Portworx supports annotating Portworx, Stork, and Autopilot components in accordance with Datadog documentation. It is recommended to annotate components pods by adding Datadog annotations to componentk8sconfig so that the Datadog Agent knows which endpoints to scrape. For Portworx, use a host-based OpenMetrics endpoint with the Datadog %%host%% template (resolved by Datadog to the pod/host IP):

    apiVersion: core.libopenstorage.org/v1
    kind: ComponentK8sConfig
    metadata:
      name: datadog-components-config
      namespace: portworx
    spec:
      components:
        - componentNames:
            - Portworx API
          workloadConfigs:
            - workloadNames:
                - portworx-api
              annotations:
                ad.datadoghq.com/portworx-api.checks: |-
                  {
                    "openmetrics": {
                      "instances": [
                        {
                          "openmetrics_endpoint": "http://%%host%%:9001/metrics",
                          "namespace": "portworx",
                          "metrics": ["px_*"]
                        }
                      ]
                    }
                  }

        - componentNames:
            - Stork
          workloadConfigs:
            - workloadNames:
                - stork
              annotations:
                ad.datadoghq.com/stork.checks: |-
                  {
                    "openmetrics": {
                      "instances": [
                        {
                          "openmetrics_endpoint": "http://%%host%%:8099/metrics",
                          "namespace": "portworx",
                          "metrics": ["stork_*"]
                        }
                      ]
                    }
                  }

        - componentNames:
            - Autopilot
          workloadConfigs:
            - workloadNames:
                - autopilot
              annotations:
                ad.datadoghq.com/autopilot.checks: |-
                  {
                    "openmetrics": {
                      "instances": [
                        {
                          "openmetrics_endpoint": "http://%%host%%:9628/metrics",
                          "namespace": "portworx",
                          "metrics": ["autopilot_*"]
                        }
                      ]
                    }
                  }
    note
    • For Portworx API, openmetrics_endpoint is exposed on port 17001 for OpenShift and on port 9001 for Kubernetes.
    • For most use cases portworx-api metrics would be enough for AutopilotRule. It is recommended to remove the annotations from the above manifest for Autopilot and Stork components if you choose not to utilize them.
    • You may choose the metrics: field to filter the metrics being scraped by the Datadog agent. Using * will cause surge in metrics and spike costs for the Datadog instance. You are advised to only whitelist metrics which will be used in AutopilotRules.

Enable Autopilot with Portworx​

Ensure that Autopilot is enabled in the StorageCluster specification as shown below:

kind: StorageCluster
spec:
  autopilot:
    enabled: true

Setting spec.autopilot.enabled: true in the StorageCluster specification enables Autopilot on the cluster.

For Datadog make the following additional changes to the StorageCluster specification as shown below:

kind: StorageCluster
spec:
  autopilot:
    enabled: true
    providers:
      - name: datadog
        type: datadog
        params:
          url: https://datadoghq.com
          secretName: datadog-autopilot-credentials
          secretNamespace: datadog-ns
  monitoring:
    prometheus:
      enabled: false
      exportMetrics: true

In this configuration, following will be the impact:

  • Datadog will be used as a provider by Autopilot as spec.autopilot.providers.name and spec.autopilot.providers.type is set to datadog.
  • secretName and secretNamespace will be used from the Secret created while enabling Datadog to scrape the metrics.
  • Both Datadog and Prometheus are supported simultaneously as well as on their own. However, an AutopilotRule once configured with one of the providers, cannot interchangeably work with the other provider.

Apply the updated StorageCluster spec to the cluster and wait for Autopilot to roll out with Datadog support. If Datadog secret is updated, then restart the Autopilot deployment to fetch new changes.

Configure proxy details to use Datadog provider in an Airgapped environment

To use Datadog as metrics provider in an airgapped cluster, add proxy server details in Storage Cluster as shown below.

autopilot:
    enabled: true
    env:
    - name: HTTPS_PROXY
      value: http://10.xx.xxx.xxx:3128

When the proxy environment variables are configured, all HTTP and HTTPS requests go through the proxy by default. Use the NO_PROXY environment variable to specify a comma-separated list of addresses or domains that bypass the proxy and communicate directly. This is essential for internal cluster communication, such as Kubernetes services (.svc, .cluster.local), loopback addresses (localhost, 127.0.0.1), and pod and service CIDR ranges (for example, 10.0.0.0/8).

Customize Autopilot​

You can customize Autopilot by specifying configuration parameters to the Autopilot spec within your Portworx StorageCluster manifest. The following example shows how to customize Autopilot configuration to use custom the Prometheus URL and update the log level to debug based on your requirement.

apiVersion: core.libopenstorage.org/v1
kind: StorageCluster
...
spec:
  autopilot:
    enabled: true
    image: portworx/autopilot:1.3.14
    providers:
    - name: default
      params:
        url: https://<THANOS-QUERIER-HOST>
      type: prometheus
    args:
      log-level: debug

Configure Autopilot with PX-Security​

If you have to configure Autopilot with PX-Security using the Operator, you must modify the StorageCluster manifest. Add the following PX_SHARED_SECRET env var to the spec.autopilot:

  autopilot:
...
    env:
    - name: PX_SHARED_SECRET
      valueFrom:
        secretKeyRef:
          key: apps-secret
          name: px-system-secrets

Upgrade Autopilot​

To upgrade Autopilot, follow the appropriate procedure based on your setup:

To latest Autopilot image without upgrading Portworx​

Portworx Operator takes care of updating all the components including Autopilot based on the update strategy. If spec.autoUpdateComponents is set to Always in the STC, Portworx will check for update on regular interval and update the Autopilot image if new version is released.

To a custom Autopilot image without upgrading Portworx​

To upgrade Autopilot to a custom image:

  1. Update the configmap/px-versions with the desired custom Autopilot image.
  2. Add the autoUpdateComponents field to the storage cluster specification:
kind: StorageCluster
spec:
  autoUpdateComponents: Once

This will prompt the Portworx Operator to reconcile the Autopilot component and pull the latest image from the updated configmap.

Along With Portworx Upgrade without configmap​

  1. Delete the configmap/px-versions file.

    When Portworx is upgraded, the Operator will automatically upgrade all installed components, including Autopilot, to the recommended versions.

  2. Upgrade the Portworx image in the storage cluster specification to proceed with the upgrade.

Along With Portworx Upgrade with configmap​

  1. Download the latest Portworx version manifest:

    curl -o versions.yaml "https://install.portworx.com/$<portworx-version>/version?kbver=$<kubernetes-version>&opver=$<operator-version>"

    Replace:

    • <portworx_version> with the Portworx version you want to use.
    • <kubernetes-version> with the Kubernetes version you want to use.
    • <operator-version> with the Operator version you want to use.

  2. Update the px-versions configmap with the downloaded version manifest:

    kubectl -n <px-namespace> delete configmap px-versions
    kubectl -n <px-namespace> create configmap px-versions --from-file=versions.yaml

  3. Add the autoUpdateComponents field to the storage cluster specification:

    kind: StorageCluster
    spec:
      autoUpdateComponents: Once

    This will prompt the Portworx Operator to reconcile all components and retrieve the latest images from the configmap if available, or download them from the manifest if not.

What to do next​

Write Autopilot rule. For more information, see Expand your Storage Pool with Autopilot
