Add Azure backup location

Microsoft Azure offers multiple discrete cloud platforms; Azure Global and Azure China are two among them. Azure Global is the standard Microsoft Azure platform that is available worldwide in the data centers around the world. Azure China is a specialized and localized version of the Azure platform available only in China tailored to meet the country's regulatory requirements.

Starting from Portworx Backup 2.7.1, you can add Azure China based backup location through the web console with minimal prerequisites.

Add Azure Global backup location

Perform the following steps to add Azure global backup location in Portworx Backup:

1. In the home page, from the left navigation pane, click Clusters.

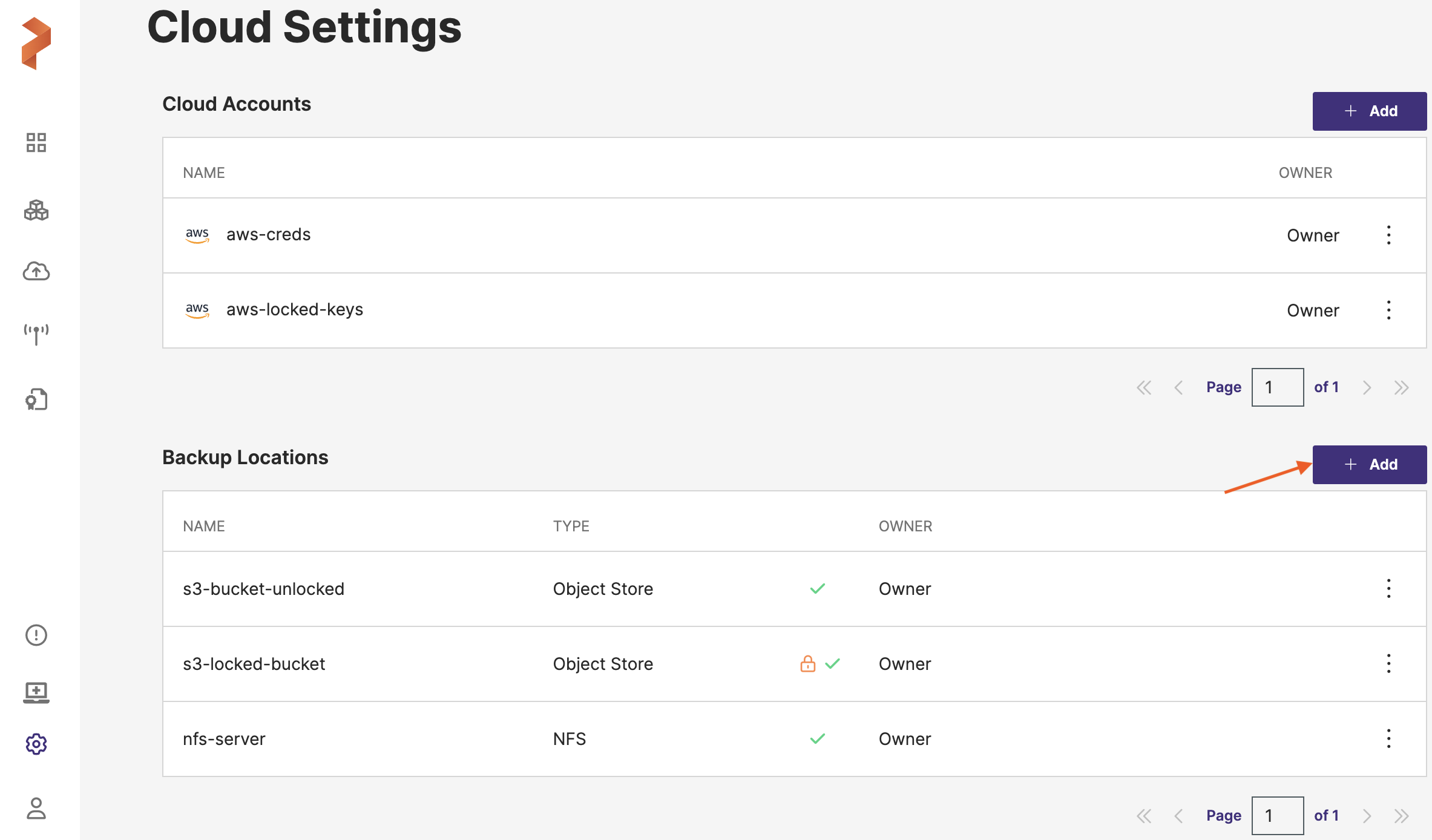

2. At the upper-right corner, click Settings > Cloud Settings.



3. In the Backup Locations section, select Add:

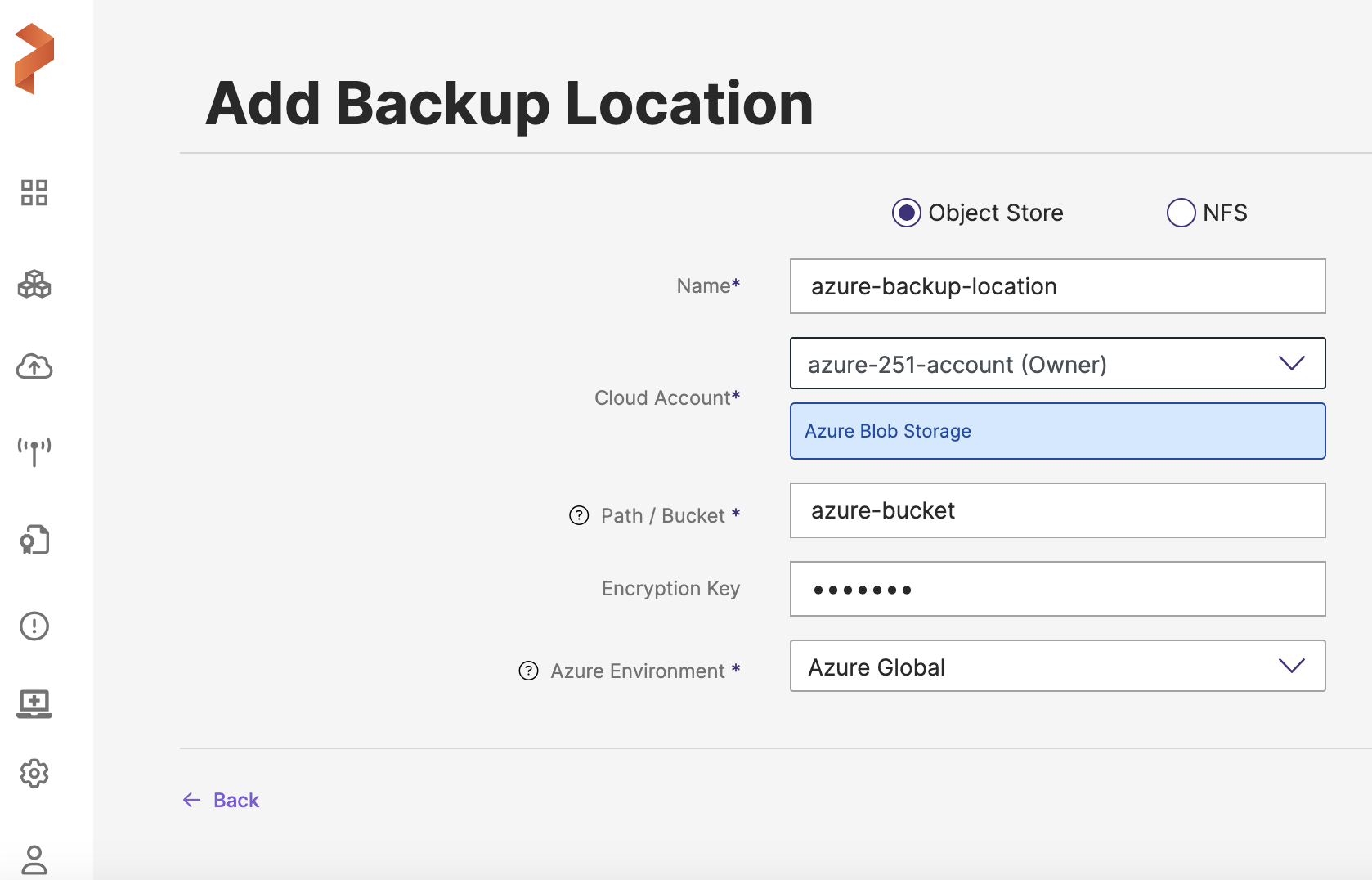

4. Populate the following fields:

   • Name: specify the name for the backup location, Portworx Backup displays this name as backup location name in the web console

   • Cloud Account: choose the Azure credentials this backup location will use to create backups

   • Path/Bucket: specify the path of the bucket or the name of the bucket that this backup location will place backups into

   • Encryption key (Optional): enter the optional encryption key to encrypt your backups in-transit. For more information on encryption support, refer Encryption matrix.

   • Azure Environment: this drop-down lists two regions; Azure Global and Azure China and by default takes Azure Global as the value for Azure environment. Choose Azure Global to add your Azure global backup location.



5. Click Add.

Portworx Backup displays the added Azure China backup location in Home page > Clusters > Settings > Cloud Settings > Backup Locations page.

Add Azure China backup location

Prerequisite

• Stork version 24.2.1 and above

• (Optional) If you have deployed Portworx on any of your Azure application cluster, then you need to update the AZURE_ENVIRONMENT environment variable of Portworx STC with the value specified below. Note that you need to update this environment variable only if the application cluster is based out of China. You can update this environment variable with the value specified below either while bringing up your application cluster or after the application cluster is up.

  AZURE_ENVIRONMENT: AzureChinaCloud

  Default value of this variable value will be set to AzurePublicCloud.

  note

  Portworx service restarts after you update the environment variable.

  note

  Portworx Backup does not support cross-region backups of Portworx volumes. Hence, you need to ensure that the cluster region and the backup location region remains the same before creating a backup of Portworx volumes.

Perform the following steps to add Azure China based backup location in Portworx Backup:

1. In the home page, from the left navigation pane, click Clusters.

2. At the upper-right corner, click Settings > Cloud Settings.



3. In the Backup Locations section, select Add:

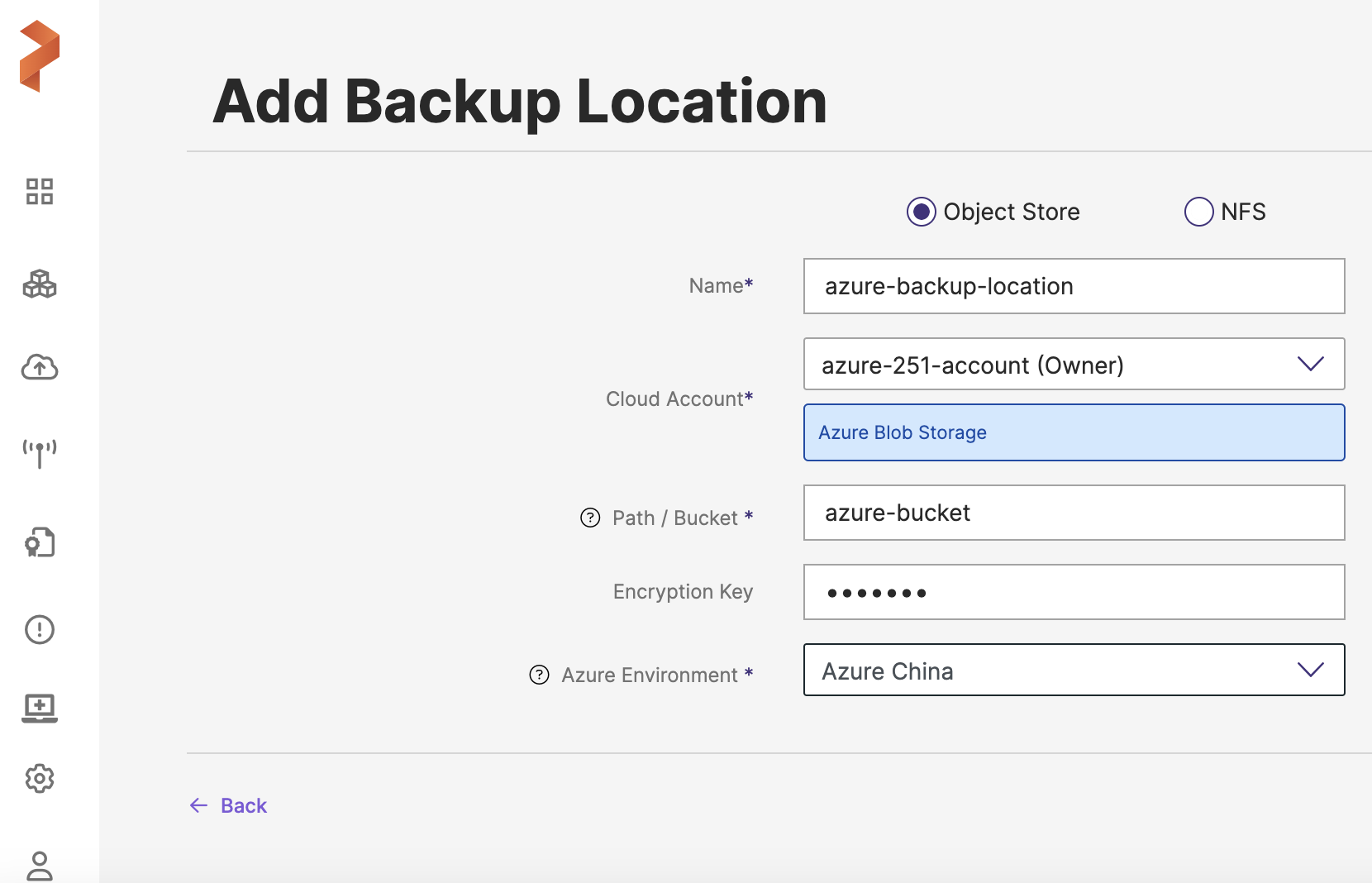

4. Populate the following fields:

   • Name: specify the name for the backup location, Portworx Backup displays this name as backup location name in the web console

   • Cloud Account: choose the Azure credentials this backup location will use to create backups

   • Path / Bucket: specify the path of the bucket or the name of the bucket that this backup location will place backups into

   • Encryption key (Optional): enter the optional encryption key to encrypt your backups in-transit. For more information on encryption support, refer Encryption matrix.

   • Azure Environment: this drop-down lists two regions, select Azure China to add your backup location based out of China



5. Click Add.

   Portworx Backup displays the added Azure China backup location in Home page > Clusters > Settings > Cloud Settings > Backup Locations page.
