Tune performance on bare metal

In its default configuration, Portworx attempts to provide good performance across a wide range of situations. However, you can improve your storage performance on your environment by configuring a number of settings and leveraging features Portworx offers. To get the most out of Portworx, follow the guidance provided in this article.

Configure the network data interface

You can provide Portworx with a specific network interface for data when you generate the spec as part of your installation. Portworx by Pure Storage recommends a network interface with a bandwidth of at least 10Gb/s and network latency below 5 milliseconds. If multiple NICs are present on the host, present a bonded interface to Portworx.

note

If you've already installed Portworx, you can update the network.dataInterface value of the install spec and reapply it.

Configure multiple NICs with LACP NIC Bonding

EARLY ACCESS

This feature is available as Early Access (EA) and should not be used in production.

Portworx uses a single network interface for data traffic, which you define as the network.dataInterface in the StorageCluster spec. This interface handles all data traffic between Portworx nodes and applications. The interface can be either a single NIC or a bonded interface when multiple NICs are present on a node or host.

In earlier releases, Portworx used a single connection over the interface, which caused all network threads to contend for the single connection. This contention restricts load distribution and prevents full utilization of available bandwidth. With LACP (Link Aggregation Control Protocol) NIC bonding support, Portworx can now create multiple parallel connections over the same interface, which significantly increases throughput by transmitting multiple data streams concurrently.

How to define a data network interface.

You can define the interface either during initial installation or by updating your existing storage cluster spec.

Option 1: During installation

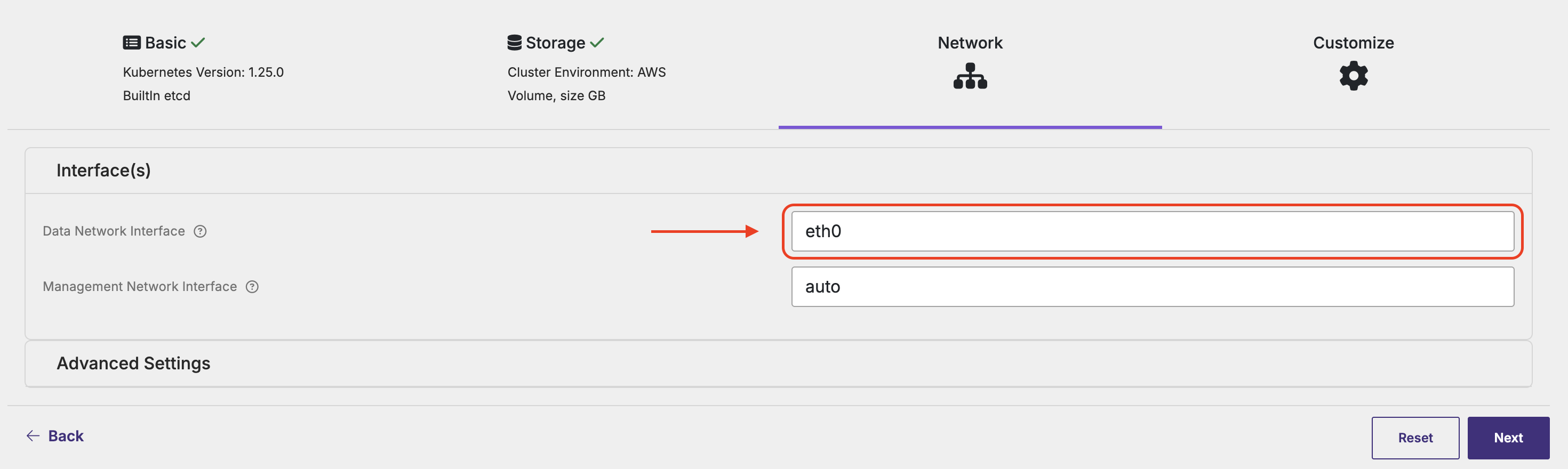

When generating the specs using the Portworx Central UI, choose the Customize options. Under the Network tab, you provide the network data interface as shown below.

Specify an interface name. If auto is specified, Portworx will select the first routable interface for management and network data interface.

Define a network data interface

Option 2: Updating an existing StorageCluster

On an already installed Portworx cluster, you can update the network.dataInterface value of the install spec and reapply it.

---
spec:
network:
dataInterface: eth0
---

Configure runtime option for parallel connections

Portworx creates multiple connections on the single address (i.e. interface). The number is defined by the cluster runtime options parameter connections_per_address, by default the value is 4.

This parameter is useful:

  • When your nodes have only one NIC, and you want to reduce network contention.
  • When using bonded interfaces that expose only one logical NIC.
  • Or when you're running I/O-intensive workloads that generate a high volume of storage traffic.

To update the number of connections use the following command.

warning

Only tune this parameter under guidance from Portworx Support or when you’ve identified a performance bottleneck via monitoring tools.

pxctl cluster options update --runtime-options "connections_per_address=2"

Note that a restart is required after you edit this parameter for Portworx to reinitialize connections.

Enable hyperconvergence

Use Stork to ensure your Pod is running on the same node in which the data resides.

Configure your cluster topology

When configured to be aware of your cluster topology, Portworx places replicas for high availability. Configure your cluster topology.

Define a VolumePlacementStrategy

StatefulSets, distributed NoSQL databases, such as Cassandra, require PVCs to be distributed across the cluster. Use Affinity/Anti Affinity rules along with topology labels to define relationships between PVCs.

Define a VolumePlacementStrategy using affinity and anti-affinity labels to distribute volumes.

Adjust storage classes

To improve performance, adjust storage class parameters in the following ways:

  • Prioritize volume traffic by setting the priority_io: field to high

  • Choose the replication factor best suited to your high availability needs

    kind: StorageClass
    apiVersion: storage.k8s.io/v1beta1
    metadata:
    name: px-storage-class
    provisioner: pxd.portworx.com
    allowVolumeExpansion: true
    parameters:
    repl: "2"
    priority_io: "high"
    nodiscard: "true"

Modify Portworx resource consumption

By default, Portworx consumes as little CPU and memory resources as possible. You can potentially improve performance by allocating more resources, allowing Portworx to use more CPU threads and memory. Do this by modifying the spec used to install Portworx based on your cluster architecture.

Disaggregated architecture

In disaggregated deployments with dedicated storage nodes, enable higher resource consumption by specifying the rt_ops_conf_high runtime option:

apiVersion: core.libopenstorage.org/v1
kind: StorageCluster
metadata:
name: px-cluster
namespace: <px-namespace>
spec:
image: portworx/oci-monitor:3.1.6
...
runtimeOptions:
rt_opts_conf_high: "1"

Hyperconverged architecture

In a non-disaggregated/hyperconverged architecture, where applications are running on the same host as storage, set threads based on the number of cores that can be allocated to Portworx. For example, if your host has 16 cores:

  • num_threads=16 sets the total number of threads performing storage operations.
  • num_io_threads=12 sets the number of threads that can do IO operations out of the total num_threads. In general, IO threads should be 75% of total threads.
  • num_cpu_threads=16 sets the number threads that can do operations other than IO out of the total num_threads.

Configure these values as runtime options:

apiVersion: core.libopenstorage.org/v1
kind: StorageCluster
metadata:
name: px-cluster
namespace: <px-namespace>
spec:
image: portworx/oci-monitor:3.1.6
...
runtimeOptions:
rt_opts_conf_high: "1"
num_threads: "16"
num_io_threads: "12"
num_cpu_threads: "16"

To see more StorageCluster examples, visit the StorageCluster section of the documentation.
