Backup rules for VMs

File-system consistent backups require you to freeze IO operations before backing up the volumes and unfreeze them after creation of backups. Portworx Backup internally creates and runs pre-exec/post-exec rules (freeze/thaw rules) for all the VMs before and after creating the VM backup.

If you want to take file-system consistent backups, here are the sample values for pod selector and action field to create pre-exec and post-exec rules. Freeze/thaw rules execute virt-freezer within the virt-launcher pod.

Refer Create Backup Rules to create pre-exec and post-exec rules for the VMs.

note

• For Portworx Backup to execute the freeze/unfreeze (thaw) rule, both VM and qemu-guest-agent should be in running state.

• Portworx Backup comes with in-built or default pre-exec and post-exec rules. If you do not enable the custome rules option during creation of VM backup in the Portworx Backup web console, in-built rules get applied to your backups.

note

Pod Selector field can be fetched from virt-launcher pod.

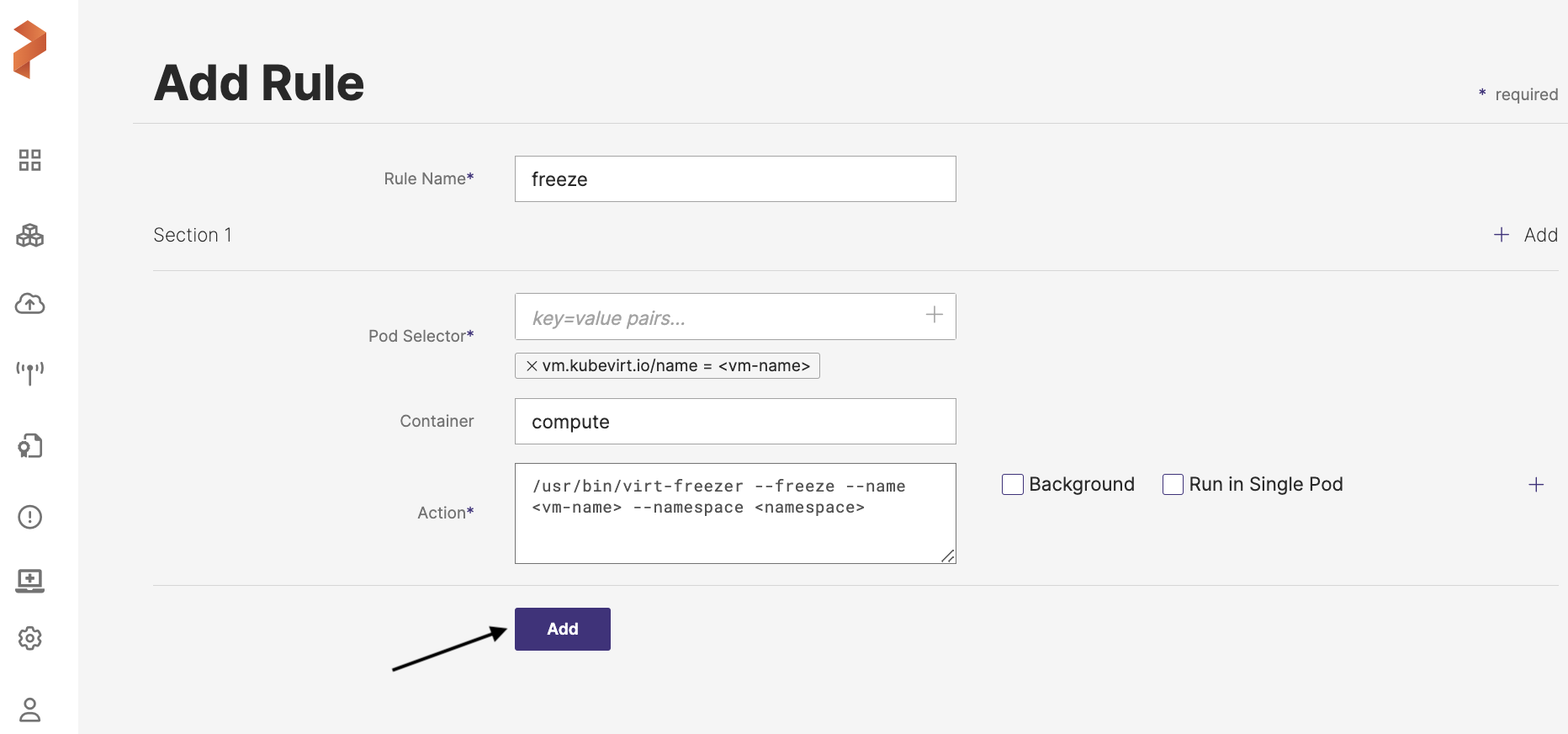

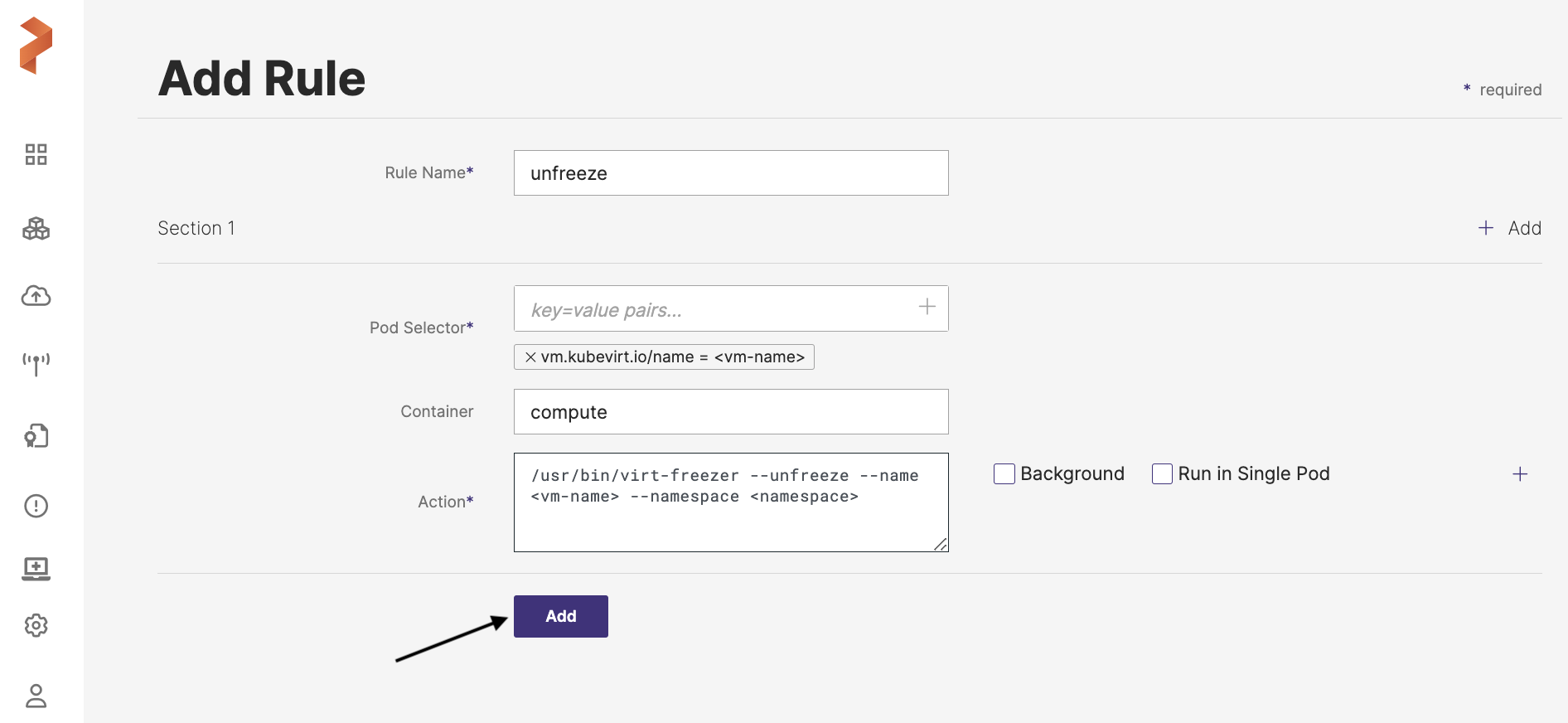

Following illustration provides sample freeze and unfreeze rules for a VM:

Here is a sample value for Pod Selector and Action fields for pre-exec and post-exec rules:

• Pre-exec rule value for freeze:

  • Pod Selector: vm.kubevirt.io/name: “<vm-name>”
  • Action: /usr/bin/virt-freezer --freeze --name <vm-name> --namespace <namespace>
  • Container: compute

• Post-exec rule value for unfreeze/thaw:

  • Pod Selector: vm.kubevirt.io/name: “<vm-name>”
  • Action: /usr/bin/virt-freezer --unfreeze --name <vm-name> --namespace <namespace>
  • Container: compute

The action for freeze/unfreeze can be fetched by describing the virt-launcher pod of the VM.

note

For every VM that you want to back up, make sure there exists a pod-selector, action, and container specific to the VM in the pre-exec and post-exec rules.
